How to Measure a Dog for a Wheelchair: 6 Measurements
Measure chest girth, both leg spacings, width, length and height, then match the set to XS, S or M. Weight alone will not choose.
Step-by-step guide
-
Weigh your dog and measure chest girth
Write down the weight and the date, then measure around the chest. Repeat any number that looks close to a chart boundary.
-
Measure both leg-spacing distances
Take front-to-rear leg spacing and front-leg spacing as two separate numbers. Do not swap one for the other.
-
Measure width, length and height
If you are unsure where to place the tape, ask our team before ordering.
-
Match the set to one row of the chart
XS, S and M weight bands overlap, so the other measurements decide. If one number sits outside every row, ask our team.
-
Start short on flat ground
Try a few calm minutes on flat ground, then remove the cart and check straps, wheels, frame alignment and rubbing points.
The Full Answer

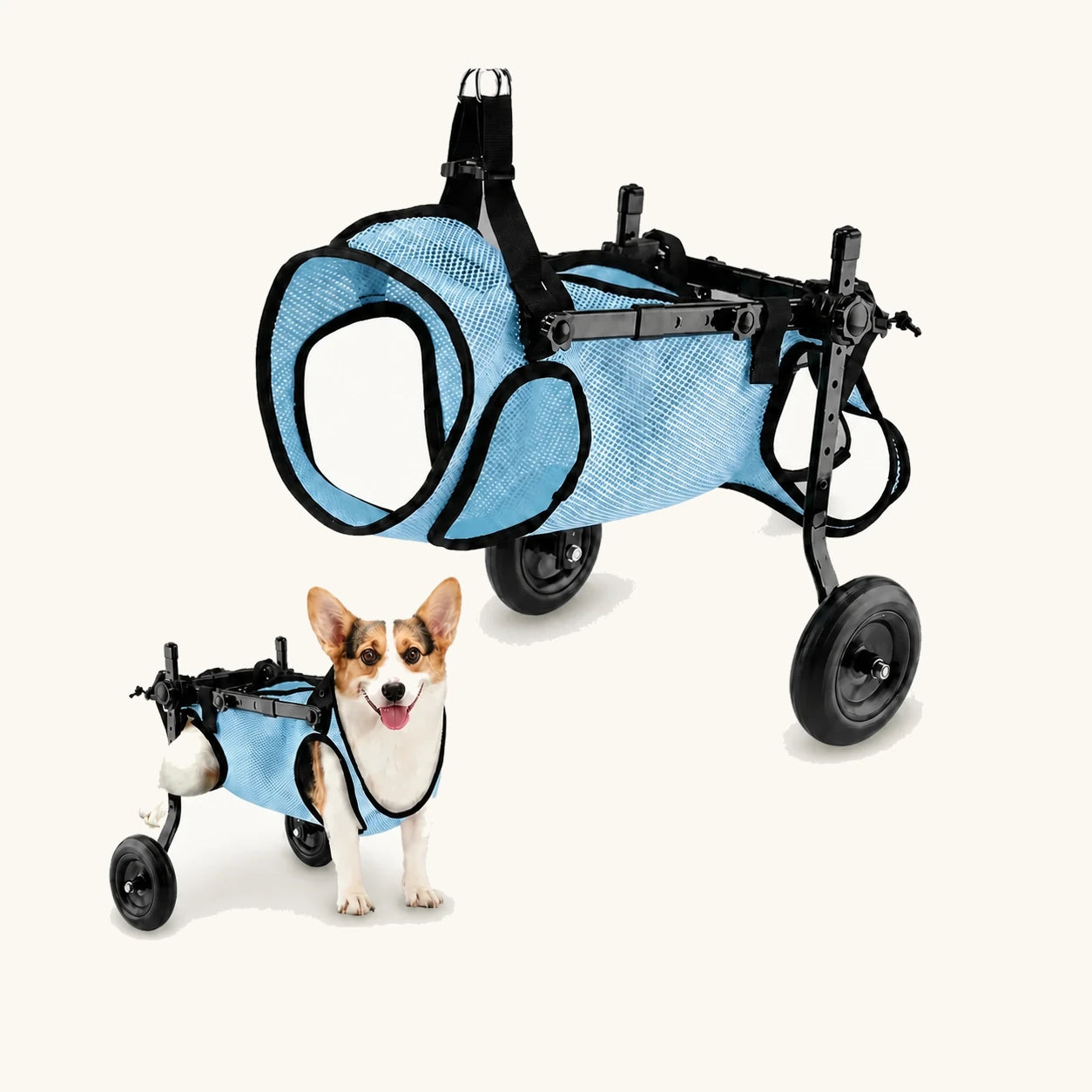

To size the JoyStride Dog Wheelchair for Small & Medium Breeds, measure six things: chest girth, front-to-rear leg spacing, front-leg spacing, width, length and height. Then check that the whole set fits one row of the size chart: XS for 1.1–7.7 lb (0.5–3.5 kg), S for 6.6–12.1 lb (3–5.5 kg) or M for 11–22 lb (5–10 kg). Measure more than once, and keep the two leg-spacing numbers apart.
What you need
A soft tape measure, a pen and paper, a scale and a helper with treats. A calm dog on a non-slip floor gives steadier numbers than a restless one on a polished surface, and a second person makes it easier to keep your dog still.
Measure in this order
- Weigh your dog and note the date.
- Measure chest girth, the distance around the chest.
- Measure front-to-rear leg spacing, the distance between the front and the rear legs.
- Measure front-leg spacing, the side-to-side gap between the front legs. This is a different number from the previous step, so write it on its own line.
- Measure width, length and height.
- Repeat anything that looks close to a chart boundary.
Take each number twice and write both readings. If they differ, measure a third time before you trust either one, and pause when your dog starts to fidget.
If you are unsure where to place the tape for width, length or height, ask our team before ordering. A question before checkout is quicker than a return after it.

Read the numbers against the chart
| Size | Weight band | Chest girth |
|---|---|---|
| XS | 1.1–7.7 lb (0.5–3.5 kg) | 35–41 cm (13.8–16.1 in) |
| S | 6.6–12.1 lb (3–5.5 kg) | 38–45 cm (15.0–17.7 in) |
| M | 11–22 lb (5–10 kg) | 46–58 cm (18.1–22.8 in) |
The chart also gives leg-spacing ranges for each size, and width, length and height ranges that are the same for XS, S and M. Our JoyStride size guide lays out all of them in one table. The weight bands overlap at 6.6–7.7 lb and 11–12.1 lb, so a dog in either range needs the other measurements to choose.
If your numbers land in two rows, measure again. If one number sits outside every row, ask our team about the next step. The product page says weight alone does not pick the size.
Slips that cost a return
- Writing the front-to-rear leg spacing where the front-leg spacing belongs, or the other way round. The two ranges differ, and the chart treats them as separate columns.
- Rounding a number that sits just outside a row into that row. The ranges on the chart are the limits, so remeasure instead.
- Measuring once. The product page says to measure more than once, and two matching readings are more reliable than one.
- Choosing by weight band alone when the weight falls in an overlap.
Before the first session

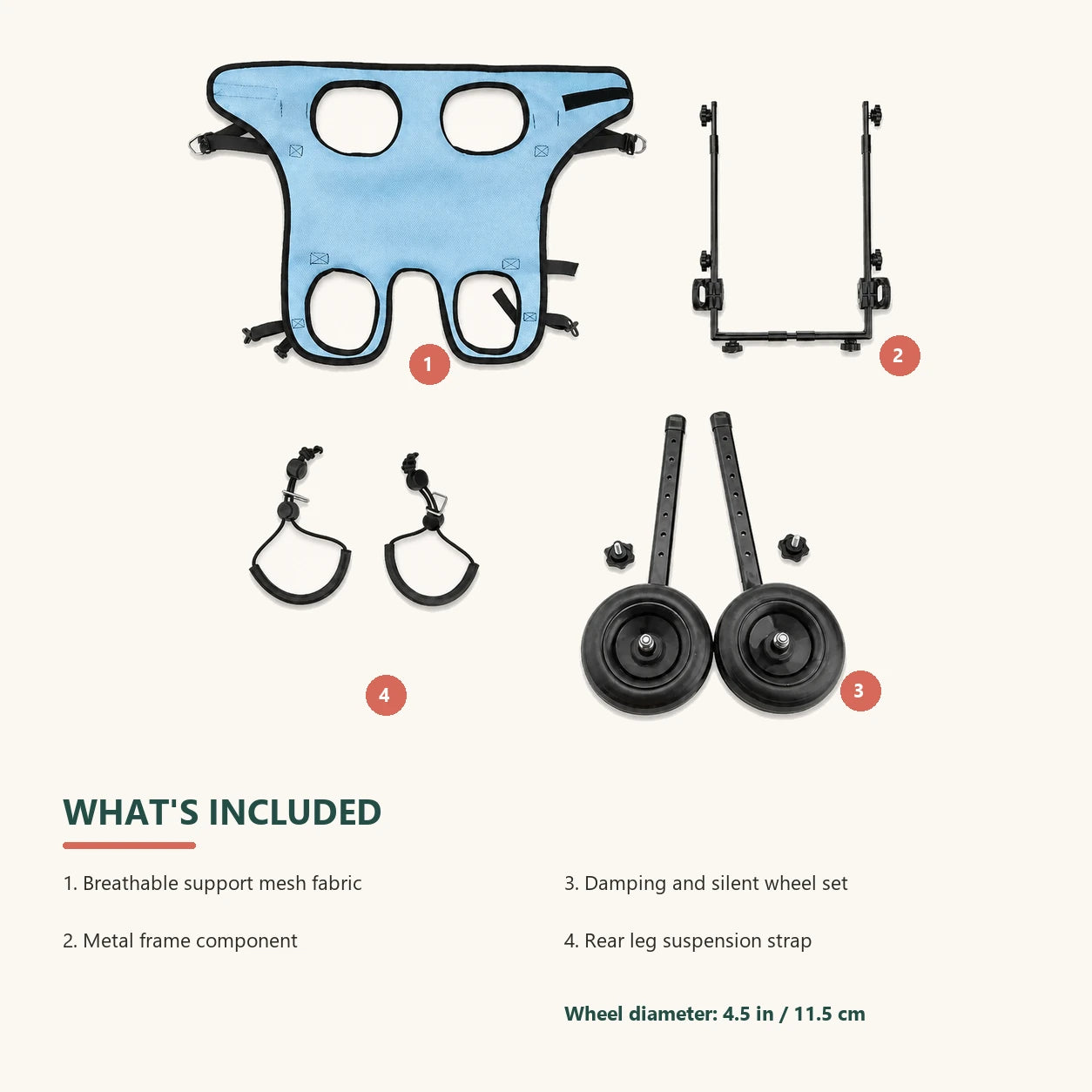

A vet should assess your dog before a cart is used, and the wheelchair does not treat any condition. Once that is settled, check the aluminum frame, mesh support areas, straps and wheels, and look for anything loose or twisted before your dog puts the cart on.
Start on calm, flat ground for a few minutes, then take the cart off and check your dog's comfort. Look under the straps, around the chest and near the frame after each early session, and recheck straps, wheel alignment and rubbing points before and after use.
Plan the route as well as the fit. Clear a straight path and a wide turning space for the first sessions, because a cart needs more room to turn than your dog does without it.
Keep a short log
Write down the surface, how long the session lasted and how your dog settled afterwards. The notes make it easier to decide whether a strap needs moving or a measurement needs repeating, and they give a vet something specific to look at.
Ready to order? Pick the size on the JoyStride Dog Wheelchair for Small & Medium Breeds page. To bring the questions to your vet first, use the questions to ask before buying a dog wheelchair.
Planning a home route is covered in our guide to indoor dog wheelchair routes, turns and floors, and common fit mistakes with beds, stairs and apparel shows why numbers beat guesses. More supports are in the joint and mobility support collection.
Common Questions
What should I measure before choosing a size?
Chest girth, front-to-rear leg spacing, front-leg spacing, width, length and height, plus weight. Keep the two leg-spacing numbers separate and measure more than once.
Where should the first session happen?
On calm, flat ground for a few minutes, with you close by. Then remove the cart and check your dog's comfort before you plan longer sessions.
What should I check after each session?
Look under the straps, around the chest and near the frame, and recheck straps, wheel alignment and rubbing points before and after use.
